IsoVibra

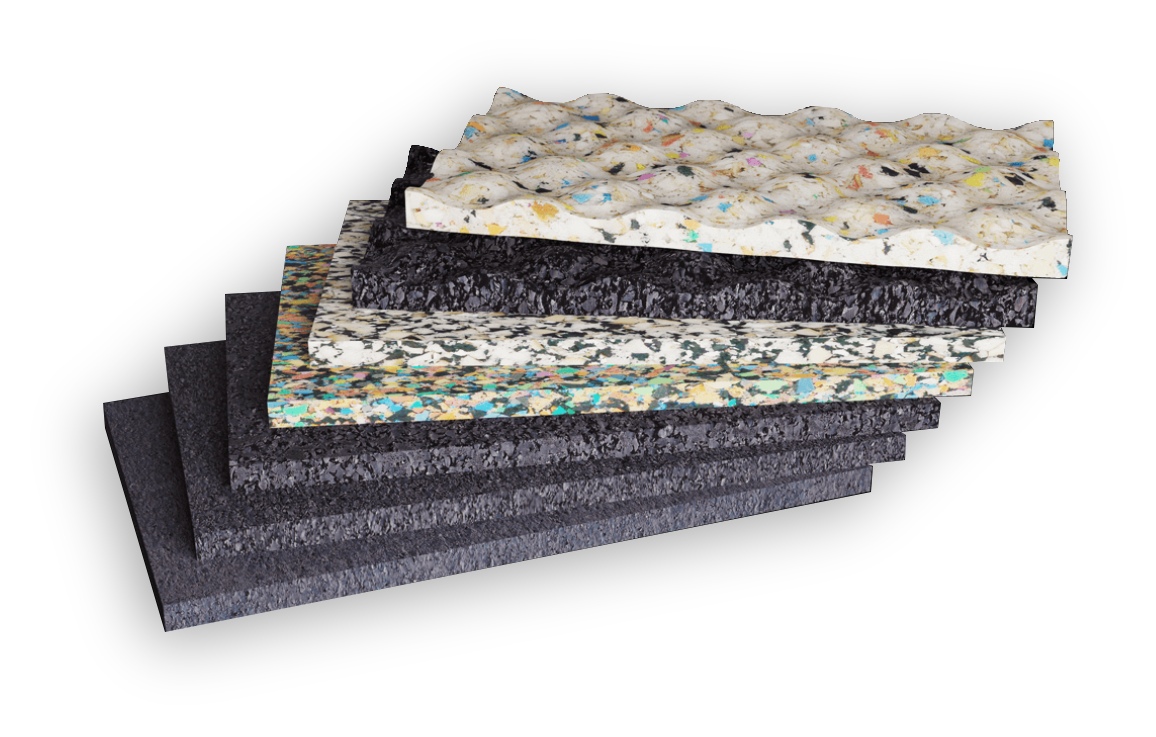

This high performance range of products can be used to acoustically isolate structural elements; from lightweight internal partitions to entire building foundations. They can also be used to provide vibration absorption in all kinds of applications, ranging from the smallest staircase to heavy duty industrial machinery foundations.
An evolution in structural protection, our range of products varies in density, hardness, thickness and geometric shape making it is possible to tailor a solution to the exact load and frequency requirements of a project. This means that a much higher level of performance is achieved
Brochures
Product Specifications
IsoVibra 30
Roll / Sheet Sizes: |
17/8mm x 1.25m x 8m 25/7mm x 1.25m x 4m |
Density: |
300 – 400 Kg/m3 |
Tensile Strength: |
0.15 – 0.65 N/mm2 (ISO 1798) |
Elongation at break: |
30 – 60% (ISO 1798) |
Max Pressure: |
0.03 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
8 – 25 Hz |
Technical Data Sheets
IsoVibra 50
Roll / Sheet Sizes: |
17/8mm x 1.25m x 8m 25/7mm x 1.25m x 4m |
Density: |
500 – 600 Kg/m3 |
Tensile Strength: |
0.2 N/mm2 (ISO 1798) |
Elongation at break: |
35% (ISO 1798) |
Max Pressure: |
0.05 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
9 – 25 Hz |
Technical Data Sheets
IsoVibra 100
Roll / Sheet Sizes: |
15mm x 1.25m x 1m 20mm x 1.25m x 1m 30mm x 1.25m x 1m |
Density: |
330 – 430 Kg/m3 |
Tensile Strength: |
0.15 – 0.70 N/mm2 (ISO 1798) |
Elongation at break: |
35 – 75% (ISO 1798) |
Max Pressure: |
0.10 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
9 – 25 Hz |
Technical Data Sheets
IsoVibra 170
Roll / Sheet Sizes: |
15mm x 1.25m x 1m 20mm x 1.25m x 1m 30mm x 1.25m x 1m |
Density: |
340 – 440 Kg/m3 |
Tensile Strength: |
0.15 – 0.55 N/mm2 (ISO 1798) |
Elongation at break: |
20 – 50% (ISO 1798) |
Max Pressure: |
0.17 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
10 – 30 Hz |
Technical Data Sheets
IsoVibra 280
Roll / Sheet Sizes: |
15mm x 1.25m x 1m 20mm x 1.25m x 1m 30mm x 1.25m x 1m |
Density: |
600 – 700 Kg/m3 |
Tensile Strength: |
>0.5 N/mm2 (ISO 1798) |
Elongation at break: |
50% (ISO 1798) |
Max Pressure: |
0.28 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
11 – 25 Hz |
Technical Data Sheets
IsoVibra 700
Roll / Sheet Sizes: |
15mm x 1.25m x 1m 20mm x 1.25m x 1m |
Density: |
800 – 900 Kg/m3 |
Tensile Strength: |
>0.5 N/mm2 (ISO 1798) |
Elongation at break: |
>50% (ISO 1798) |
Max Pressure: |
0.7 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
13 – 30 Hz |
Technical Data Sheets
IsoVibra 1500
Roll / Sheet Sizes: |
10mm x 1.25m x 6m |
Density: |
950 – 1050 Kg/m3 |
Tensile Strength: |
>1.5 N/mm2 (ISO 1798) |
Elongation at break: |
>80% (ISO 1798) |
Max Pressure: |
1.5 N/mm2 (in acc. to EN 826) |
Natural Frequency: |
14 – 30 Hz |
Technical Data Sheets
Easy Installation
Simple installation process that does not require any specialist tools or equipment.
High Performance Acoustic Product
For use where high levels of acoustic isolation are required.
Made from Recycled Waste Rubber
This product provides a useful application for material that would otherwise go into landfill.
New Build
Suitable for use in new build projects.
Refurb
Suitable for use in refurbishment projects.
Vibration Isolation
This product is designed to isolate low frequency sound and provide vibration absorption.
Click the benefit icon and further information about benefits will appear here.
Main Applicaitons
The IsoVibra range of structural and vibration products can be used to target specific vibration problems within a building. The range includes standalone products that can be
used for everyday applications such as isolating partition walls along with products that can be used in high performance bespoke multi-layer solutions.
To reduce or eliminate structural vibration effectively two factors must be taken into account; the load and excitation frequency. The IsoVibra structural range of products are available in varying hardness, densities, thicknesses and geometric shapes giving each variant differing absorption properties. This means that a solution can be tailored to meet the exact requirements of a specific vibration problem.
To discuss solutions tailored to your specific needs please contact the Thermal Economics Technical Department on 01582 544255.

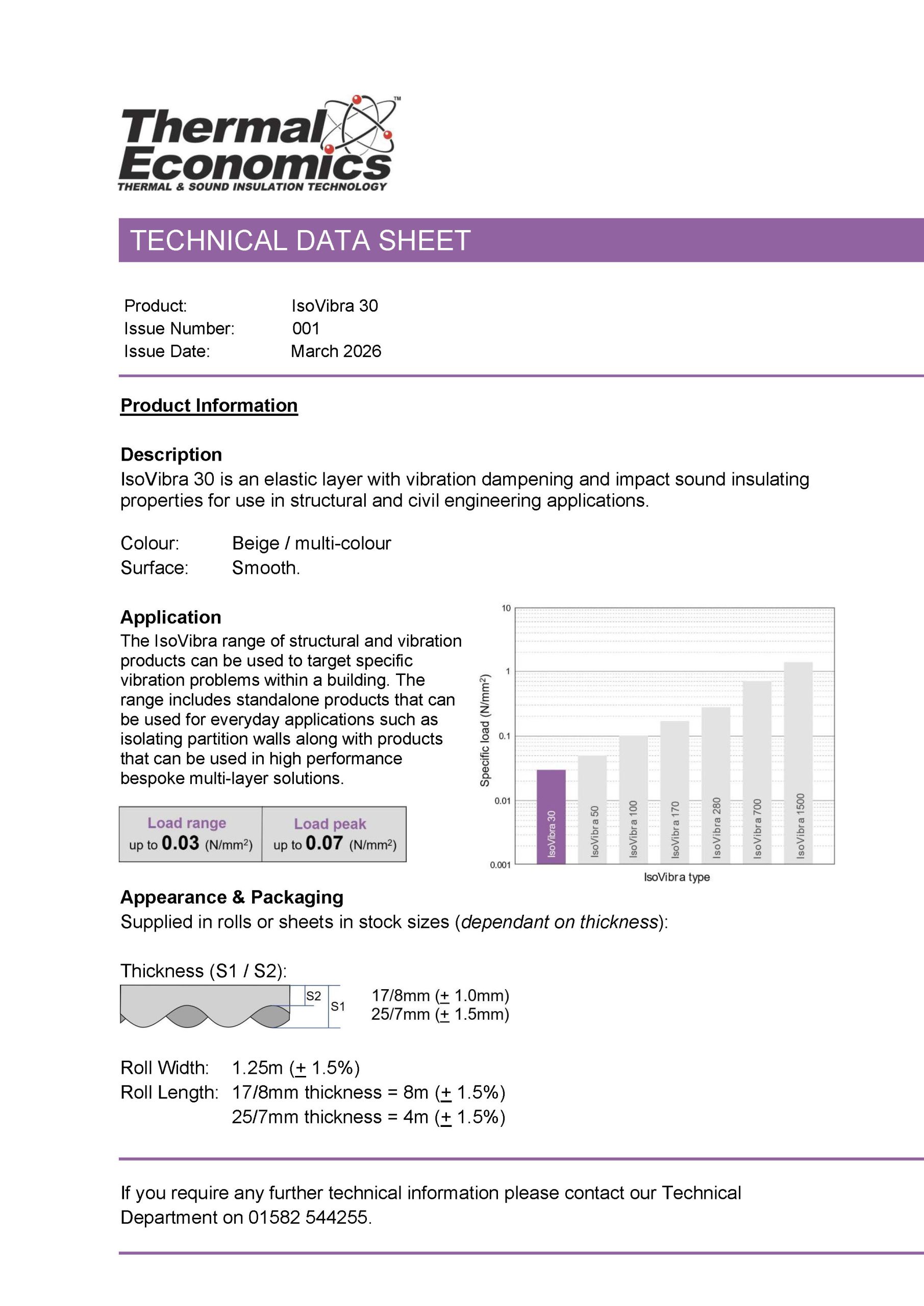

IsoVibra 30
IsoVibra 30 is a lightweight, soft elastic layer with vibration reducing properties made from granulated PU Foam. Available in multiple thicknesses IsoVibra 30 is used in applications supporting light weights.
Suitable for use under compression stress up to: 0.030N/mm2 with peak loads up to 0.07N/mm2.
IsoVibra 30 has a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero.

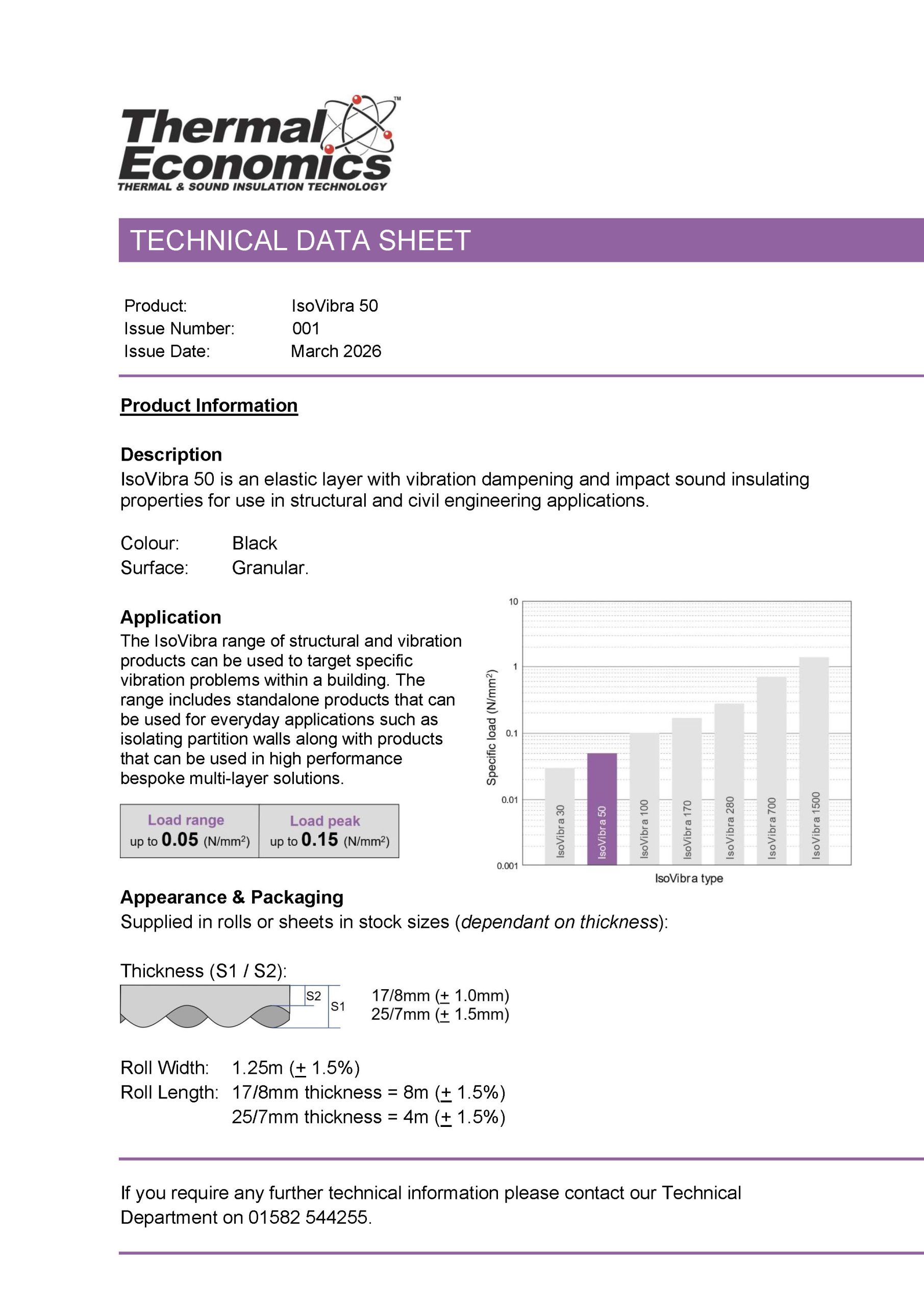

IsoVibra 50
IsoVibra 50 is an acoustic insulation and vibration reducing mat made from recycled fine grained cellular rubber. Available in multiple thicknesses IsoVibra 50 is used in applications supporting light to moderate weights.
Suitable for use under compression stress up to: 0.05N/mm2 with peak loads up to 0.15N/mm2
With an extremely high recycled waste cellular rubber content, a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero Isorubber 50 provides a means of using problematic waste material to the benefit of the environment.

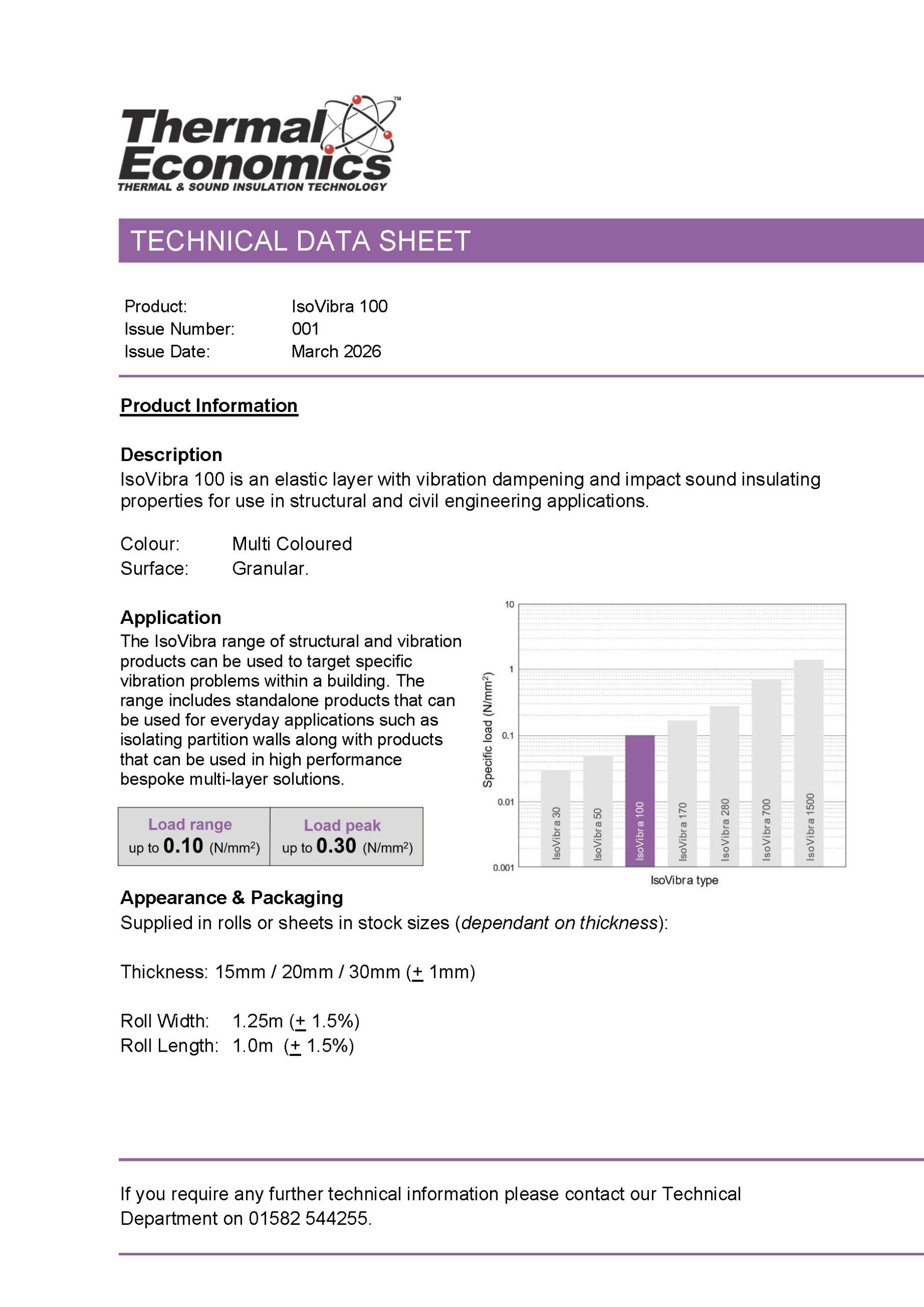

IsoVibra 100
IsoVibra 100 is an elastic layer with impact sound insulation and vibration reducing properties that is made from granulated PU foam. Available in multiple thicknesses IsoVibra 100 is used in applications supporting moderate weights and is suitable for use under compression stresses up to 0.10N/mm2 with peak loads up to 0.30N/mm2.
IsoVibra 100 has a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero.

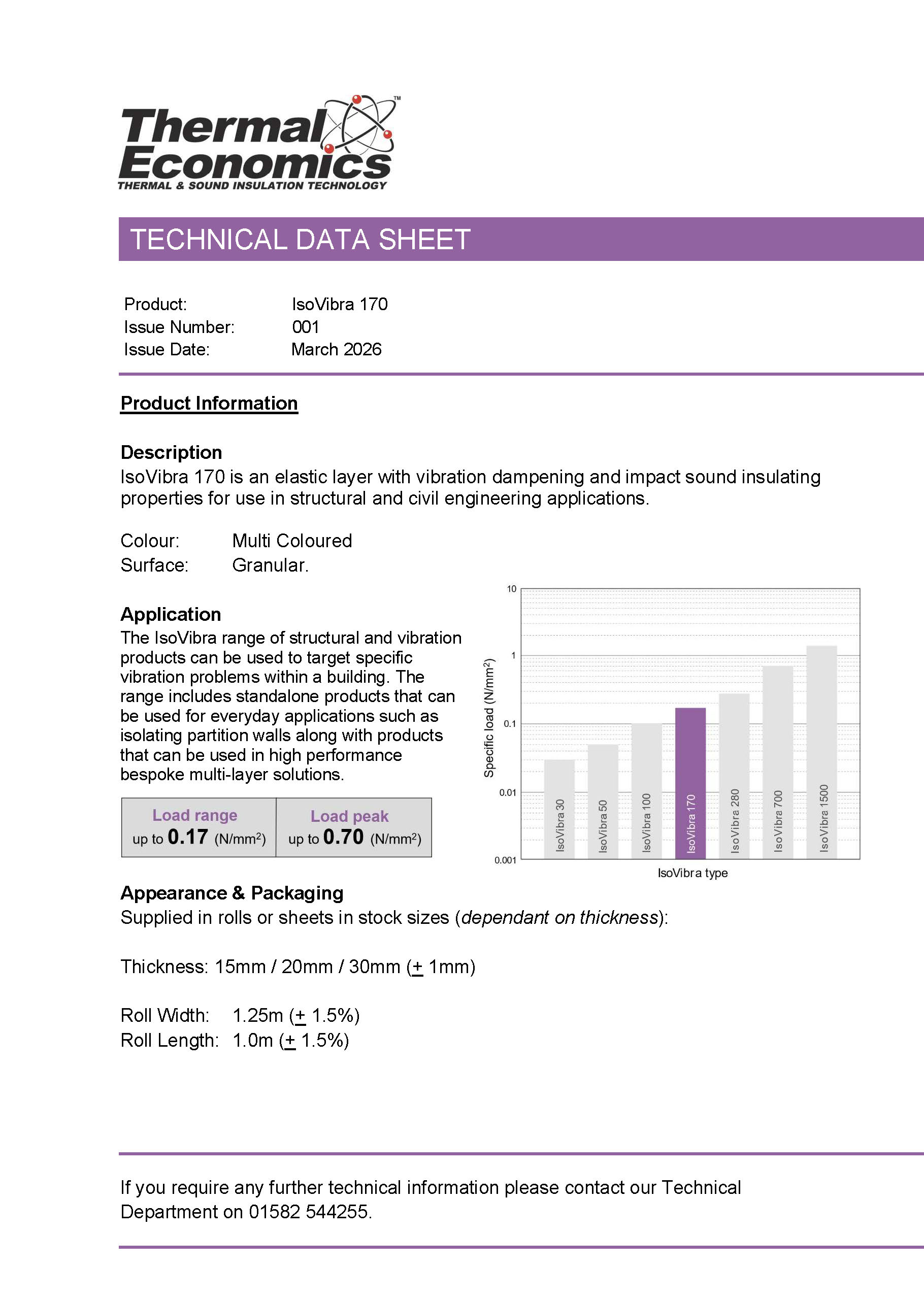

IsoVibra 170
IsoVibra 170 is an elastic layer with impact sound insulation and vibration reducing properties that is made from granulated PU and EVA foams. Available in multiple thicknesses IsoVibra 170 is suitable for use in applications supporting moderate to heavy weights and is suitable for use under compression stresses up to 0.17N/mm2 with peak loads up to 0.70N/mm2.
IsoVibra 170 has a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero.

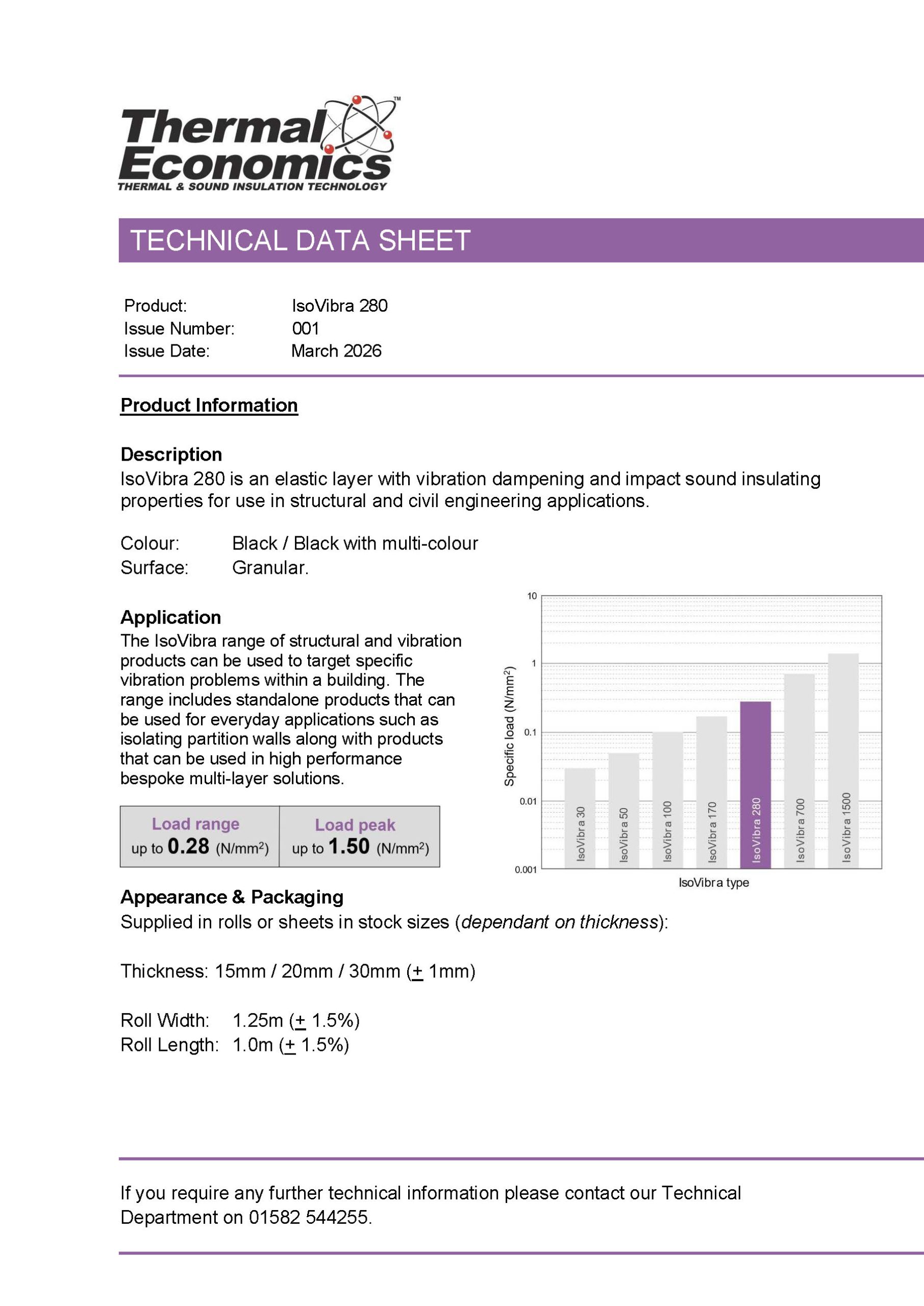

IsoVibra 280
IsoVibra 280 is an acoustic insulation and vibration reducing mat made from recycled cellular rubber. Available in multiple thicknesses IsoVibra 280 is used in applications supporting heavy weights. Suitable for use under compression stress up to: 0.28N/mm2 with peak loads up to 1.50N/mm2
With an extremely high recycled waste cellular rubber content, a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero Isorubber 280 provides a means of using problematic waste material to the benefit of the environment.

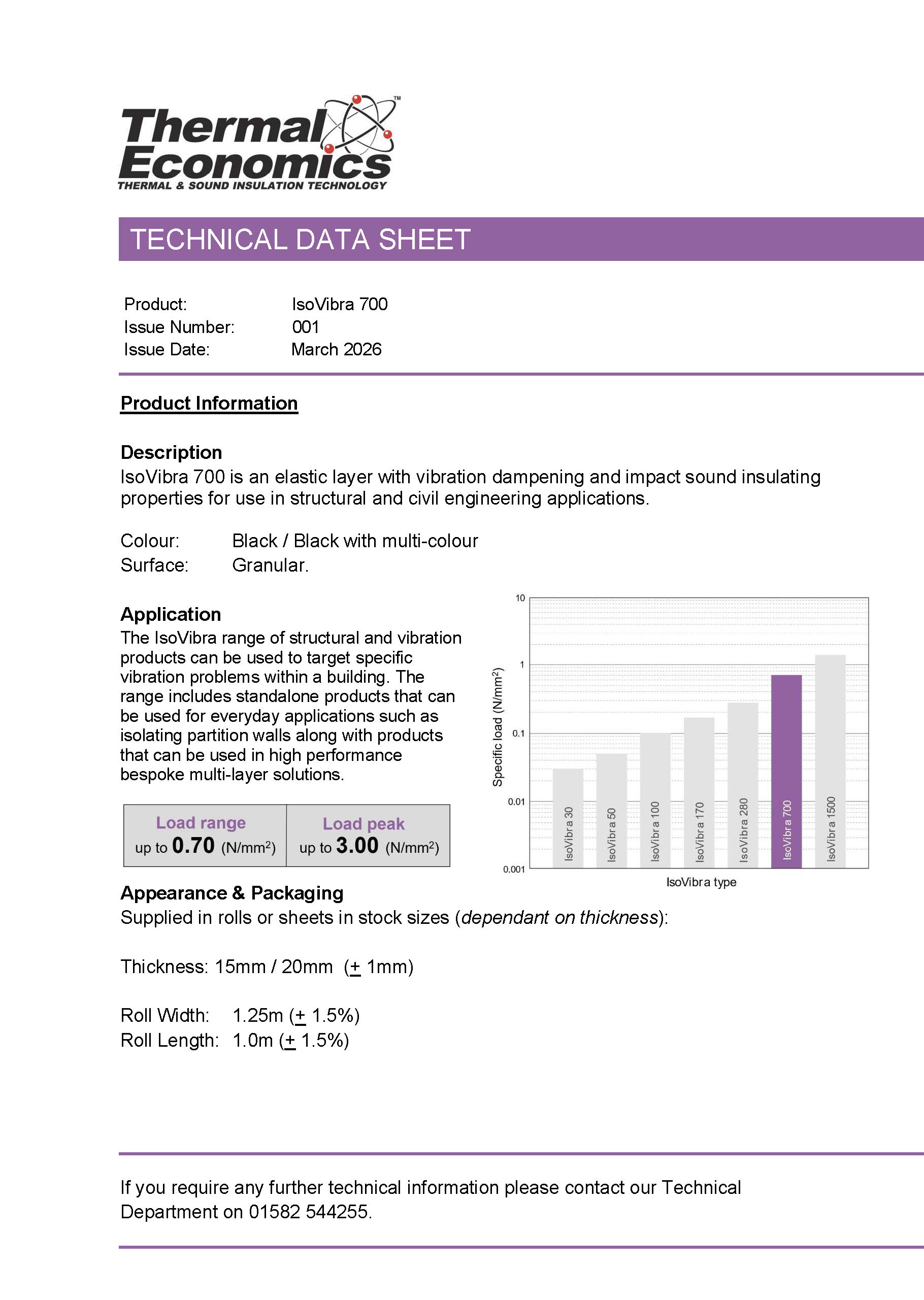

IsoVibra 700
IsoVibra 700 is an acoustic insulation and vibration reducing mat made from recycled cellular rubber. Available in multiple thicknesses IsoVibra 700 is used in applications supporting very heavy weights. Suitable for use under compression stress up to: 0.70N/mm2 with peak loads up to 3.00N/mm2
With an extremely high recycled waste cellular rubber content, a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero Isorubber 700 provides a means of using problematic waste material to the benefit of the environment.

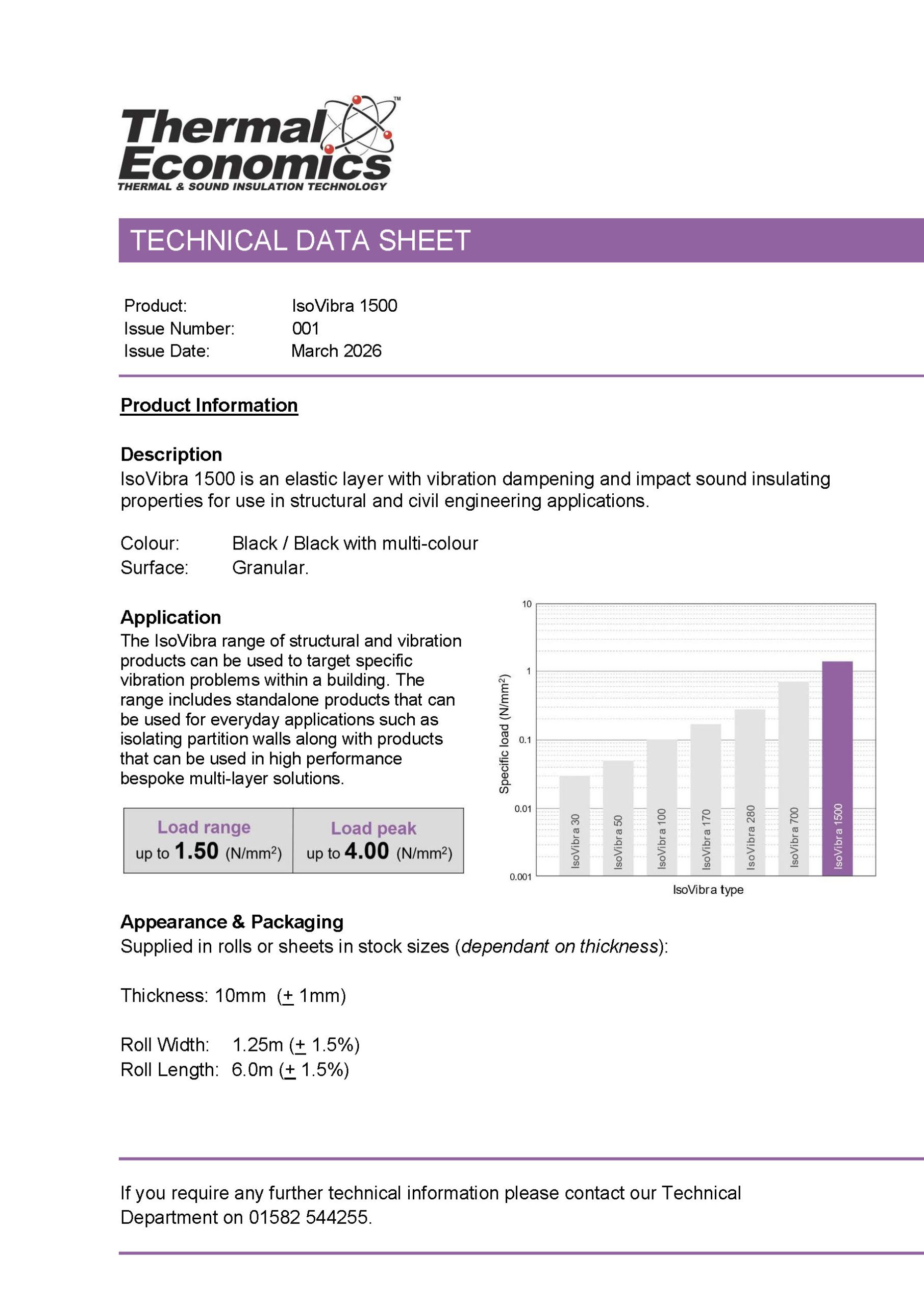

IsoVibra 1500
IsoVibra 1500 is an acoustic insulation and vibration reducing mat made from recycled cellular rubber. IsoVibra 1500 is used in applications supporting extremely heavy weights. Suitable for use under compression stress up to: 1.50N/mm2 with peak loads up to 4.00N/mm2
With an extremely high recycled waste cellular rubber content, a Global Warming Potential of less than 5 and an Ozone Depletion Potential of Zero Isorubber 1500 provides a means of using problematic waste material to the benefit of the environment
